The sought-after seal of quality
The Red Dot Product Design award. One of the most prestigious awards that can be bestowed upon any creation. Only products with a truly outstanding design can be given the Red Dot seal of quality. That's because this system was designed for complete PA performance, while making it easy to set up, take down, and move between venues.
Superior sound coverage
The MAUI 11 G2 stands out with its innovative array configuration that increases range and coverage, providing clear, consistent audio across a wide space. This design minimises the need for separate monitor speakers by offering an extensive, balanced sound field. Ideal for performers who interact with diverse audience sizes and settings, this system ensures every note is heard perfectly, from the front row to the back.
Advanced audio technology for pristine output
Featuring LD Systems' proprietary DynX DSP technology, the MAUI 11 G2 ensures your sound is always crisp and free from distortion, even at high volumes. The system includes a multiband limiter, EQ, compressor, and a 3-way crossover with runtime correction, enhancing every performance with flawless sound reproduction. This technical finesse allows for the delivery of precise highs, balanced mids, and deep bass, setting a new standard for clarity and audio fidelity in portable PA systems.
Flexible and easy to use
The MAUI 11 G2 promotes ease of use through its intuitive design. The integrated 4-channel mixer, equipped with Bluetooth audio streaming, provides complete control over your sound. System presets for mono or stereo configurations further simplify operation, making it quick and straightforward to adapt the system for different performance needs. This flexibility is invaluable for artists and speakers who require reliable, high-quality sound in various environments.

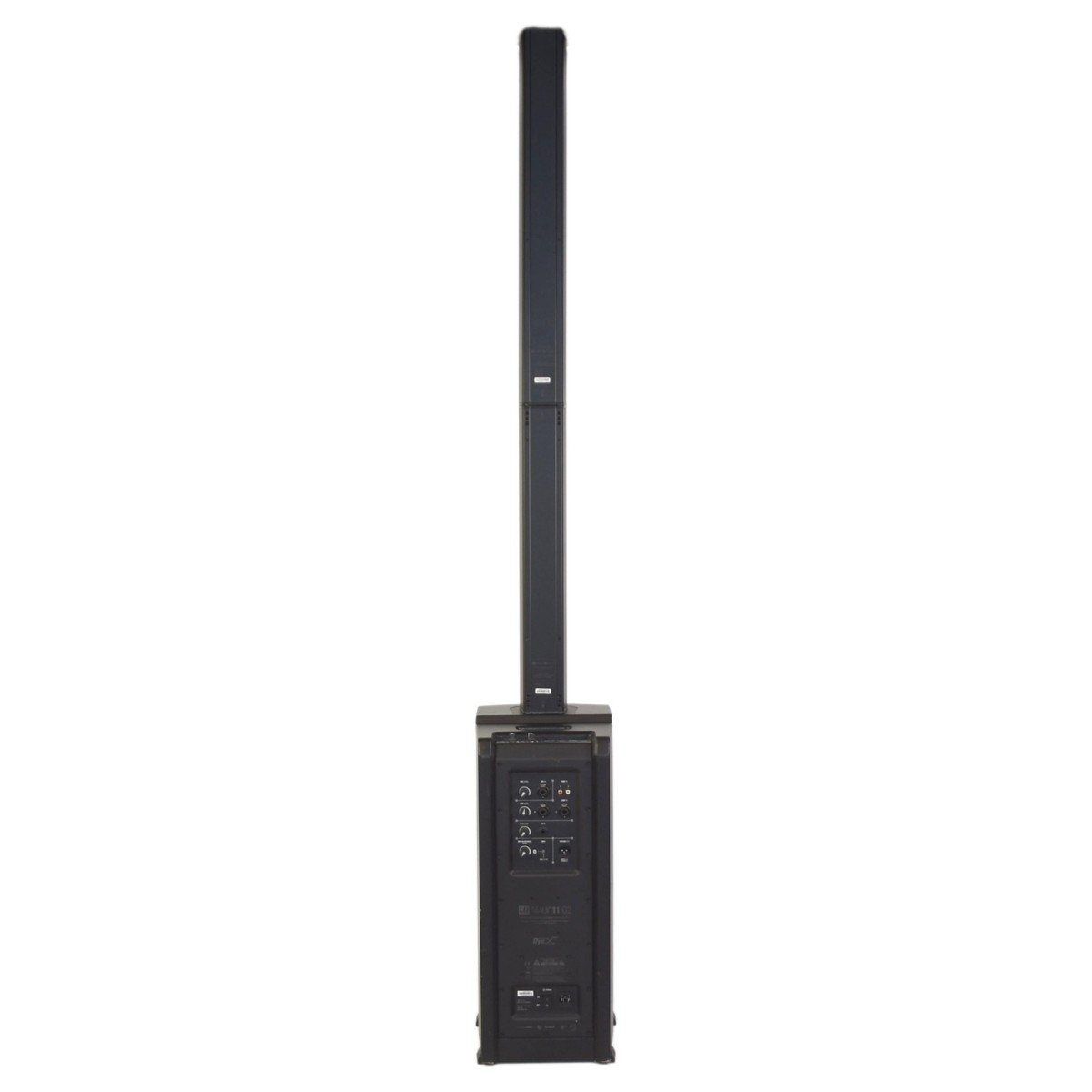

Designed for portability and versatility
Portability is at the heart of the MAUI 11 G2 design. The system's two-piece column and lightweight subwoofer make transportation and setup effortless. Whether moving between gigs or setting up in fixed locations, this system adapts to your needs without the hassle. Additionally, the availability of smart transport accessories and special mounting hardware makes the MAUI 11 G2 a comprehensively thought-out solution for both mobile entertainers and permanent installations.
Features
- All-in-one column speaker for PA and monitor applications
- 1000W (peak) Class-D amplifier provides high power in a lightweight design
- Powerful bass reproduction with 3 x 6.5'' LF woofers
- Balanced mid-range thanks to the 8 x 3'' full-range speakers
- Precise and silky highs with 2 x 1'' HF tweeters
- Increased range and wider coverage through the array arrangement
- Homogeneous dispersion pattern through a BEM-optimised tweeter waveguide
- Distortion-free sound, even at the highest volume, thanks to DynX® DSP technology
- Full control though a 4-channel mixer, including Bluetooth® stereo audio streaming
- Two-piece column provides a compact transport solution for your system
- Secure plug-and-play connection thanks to the wireless multi-pin mechanism
- Wide range of application options through dismountable columns
- Easy operation with presets for mono or stereo configurations
Specifications
System
- Maximum SPL: 124dB (peak)
- Frequency Response: 50Hz - 20kHz
- Dispersion: 120° x 20° (H x V)
- Overall Height: 2030mm
- Weight: 24.9kg
- Product Code: LDMAUI11G2
Subwoofer
- Woofers: 3 x 6.5'', ferrite magnets, 1.5'' voice coils, custom-made
- Cabinet: 15mm plywood, bass reflex design
- Finish: Textured paint
- Dimensions: 285mm x 650mm x 373mm (W x H x D)
- Weight: 16.9kg
Mid/Hi System
- Midrange Transducers: 8 x 3'', ferrite magnets, 1'' voice coils, custom-made
- Tweeters: 2 x 1'', neodymium magnets, 1'' voice coils, custom-made
- Horn: Waveguide
- Loudspeaker Inputs: 1 x custom-made multipin
- Cabinet: Aluminium, closed design
- Finish: HD coating
- Dimensions: 96mm x 620mm/730mm x 104mm (W x H x D)
- Weight: 2.6kg
Amplifier
- Type: Class-D
- System Output: 500W (RMS) / 1000W (peak)
- Protection: DC protection, Multiband limiter, Short circuit, Thermal overload
- Cooling: Covection
- Line Inputs: 2 x stereo (RCA, XLR/6.3mm jack)
- Line Outputs: 1 x direct out (XLR)
- Mic Inputs: 1 (XLR/6.3mm jack)
- MP3 Inputs: 1 (3.5mm jack)
- Hi-Z Inputs: 1 (6.3mm jack)
- Loudspeaker Outputs: 1 x custom-made multipin
- DSP Characteristics:
- Bit Depth AD/DA Converter: 24-bit
- Internal Sampling Frequency: 48kHz
- Signal-to-Noise Ratio: 100dB
- Power Connector: IEC (power cable included)
- Voltage: 100-240V, 50/60Hz (auto switching)
- Power Consumption: 11W (on) / 600W (max.)
